If you are using Webhooks, you will need to provide the following information to the SAM team to set the URL.
Webhook URL: Provide the Webhook URL to be used for API callbacks and notifications.
Public Key: Include the public key that will be used to verify webhook signatures and ensure secure communication.
This guide explains how external systems can receive inventory updates from our system by registering a callback URL and a shared secret. All data is encrypted using AES-256-CBC before being transmitted.
📌 Prerequisites
Callback URL – A public URL capable of receiving
POSTrequests.Shared Secret – Used for AES-256-CBC encryption/decryption.
Channel – Created via the mock service to receive and debug webhook calls. (if required)
📦 Webhook Payload Structure
The payload is a JSON array containing multiple inventory items. Here’s what each field means:
Field |
Description |
|---|---|
|
Number of items being updated |
|
Internal catalogue number (e.g., GM-24) |
|
One of: |
|
Unique identifier across art centres |
Sample JSON Payload (Before Encryption):
[ { "quantity": 1, "catalogue_no": "GM-24", "inventory_type": "artwork", "barcode": 11111 }, { "quantity": 10, "catalogue_no": "GM-25", "inventory_type": "product", "barcode": 222222 } ]
🔐 Encryption
All payloads are encrypted using AES-256-CBC before transmission.
Use this online tool to simulate encryption:
🔗 AES Encryption Tool
Make sure to:
Set the Key (shared secret from channel).
Set the IV (Initialization Vector) if provided.
Debug the webhook API if required:
You will receive the above payload in ASE-256-CBC encrypted format. Please refer to the below example curl:
curl --location 'http://cbm.symbuild.com.au/callback.php?channel=8a7ac9ef92de3664' \ --header 'Content-Type: application/json' \ --data 'HAFq5XFEYaveQzPHrrGgm4gQikkYm9rkuaYgNCk+BDaorLdDiLnYPX+WKfW7Kd5eVJAuyusk6BLSGdsH0cxSrtKvY3OSLpJa7MoodyGkZ4LejeKPlaBmKg8pzzXTJTyxq5chlpciLJjvLAIwvOlE+Rd370IdKEMEfhrhoqzAWWPeXoqKEnqt0mgY1nDXhfQf6o5qH/v92V5akF4Uhwuk5KRZZXXkj3Ca/aXUf+/j9ifPUviiq1aUx8WSSbgo1JJtFXPOhEaGKFpP0afjAZuCr/4kJXhOKouuaxn50AuL+bLTlCzzh6QkTvMcgWaXC4Nrl85PjbuzhlIu/IDHjRJ+jPzY4c8OnpZ50ZWH/AYbItUp+bDxM26BbzCqaDSEANB7JgWALXZtvad2/tR7DXaOm4biFXfvVgnvMEJGXq6Isoxlb2px/rS2ZWmdPIupHNk+nb3XsvHJ96RRWVJ1ndEmpg=='

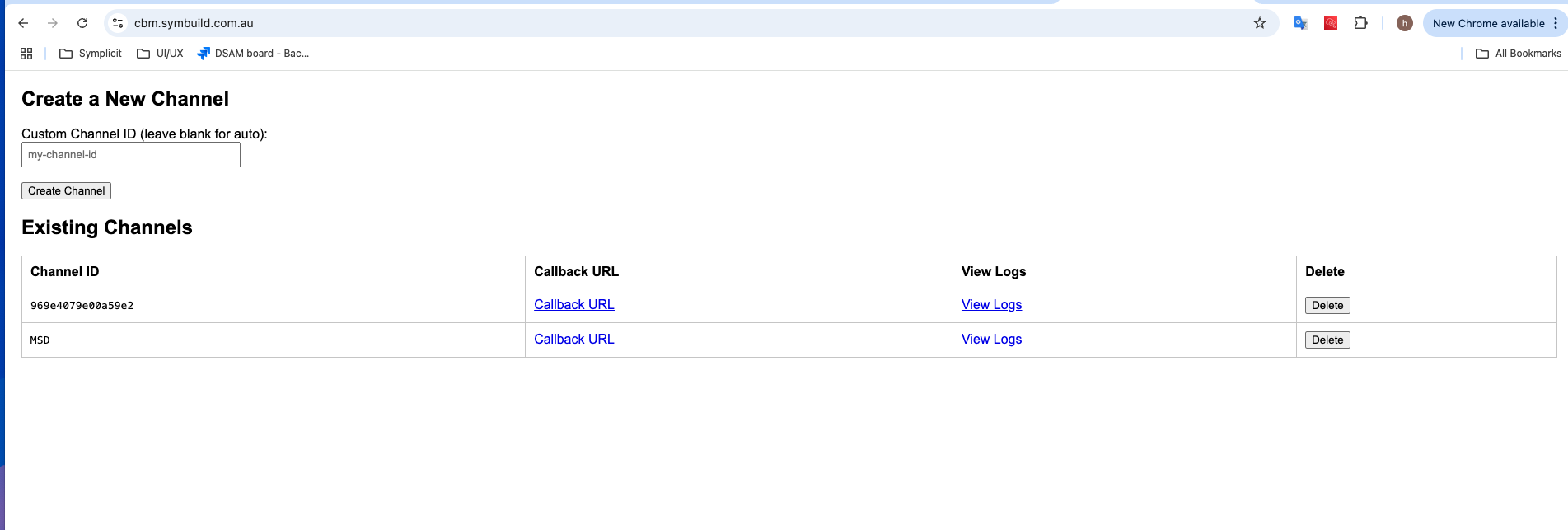

If you want to debug the callback URL, you can use http://cbm.symbuild.com.au and create a channel:
Once you create the channel, you can see the secret for the created channel.

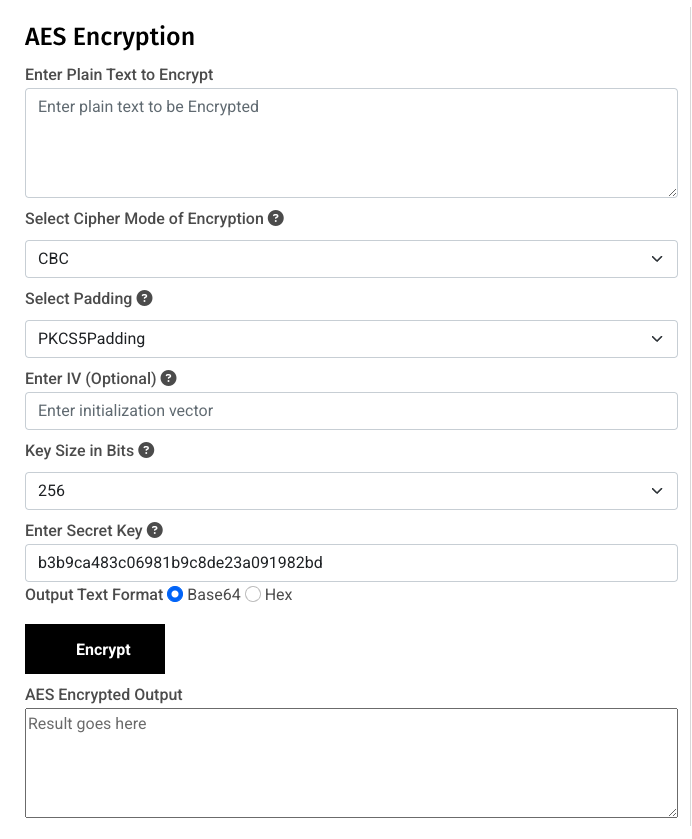

Use this tool to do the encryption of the sample payload AES Encryption and Decryption Online with the properties below:

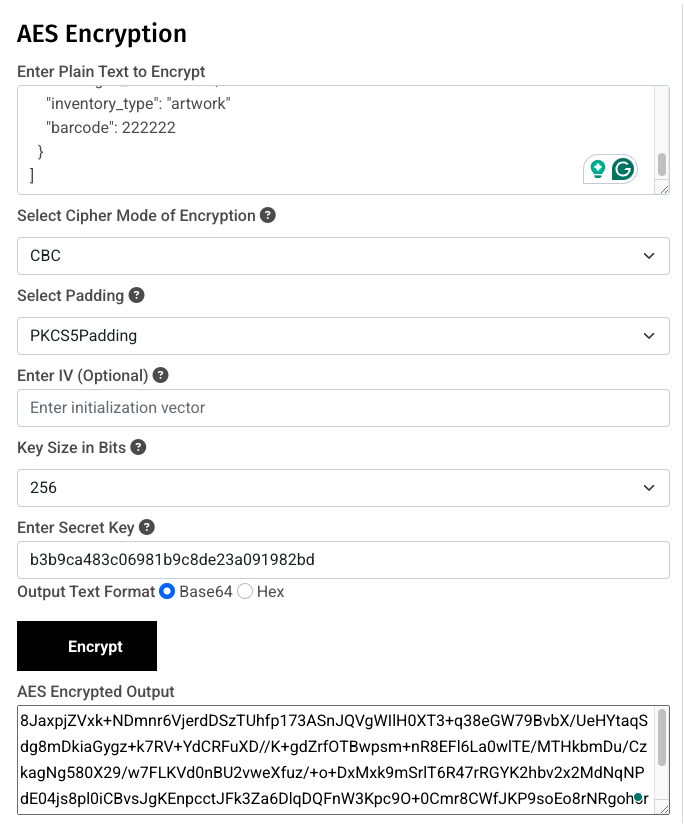

Once you get the encrypted output. Get the callback URL with the channel id from the mock service:
`http://cbm.symbuild.com.au/callback.php?channel=d35dd97e3a1ae05c`

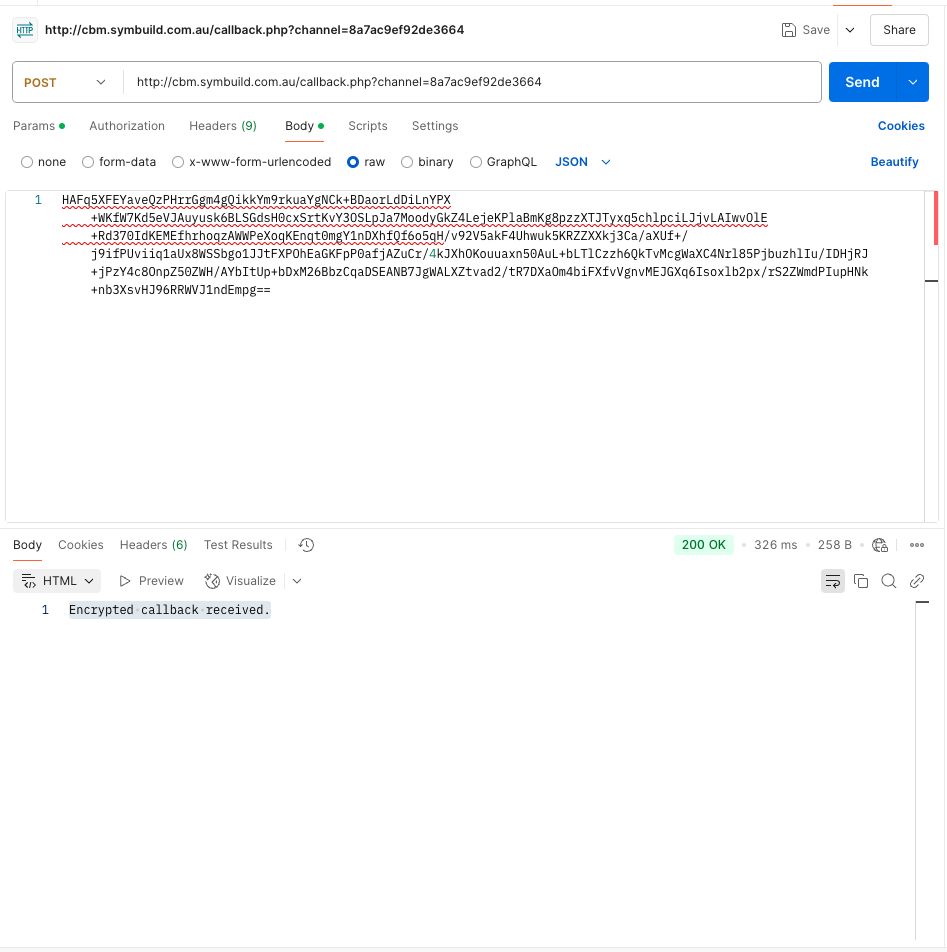

Then call it via the posman like below:

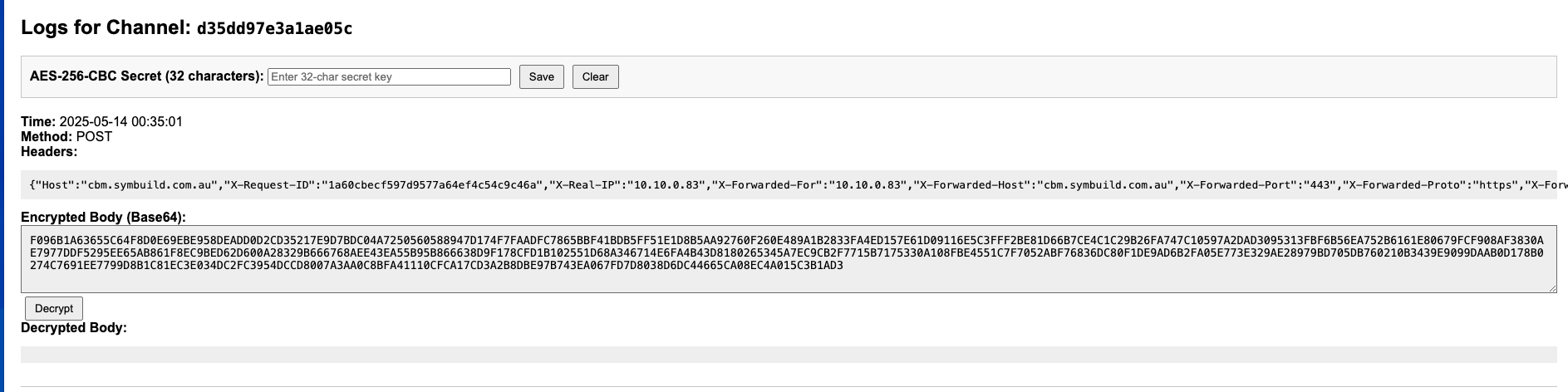

Once you hit the API, you can see the logs after the view logs button:
https://cbm.symbuild.com.au/view_log.php?channel=d35dd97e3a1ae05c
